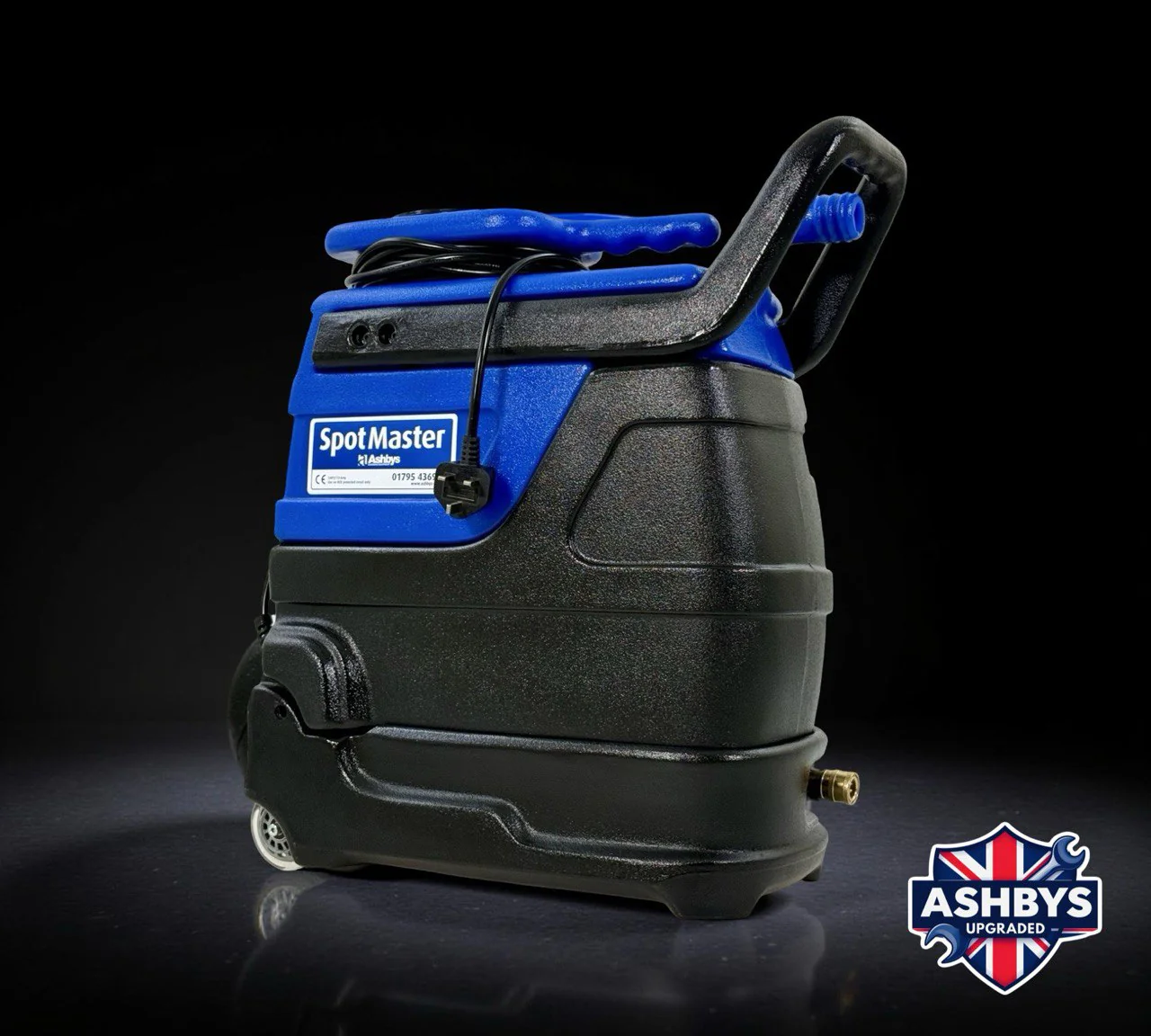

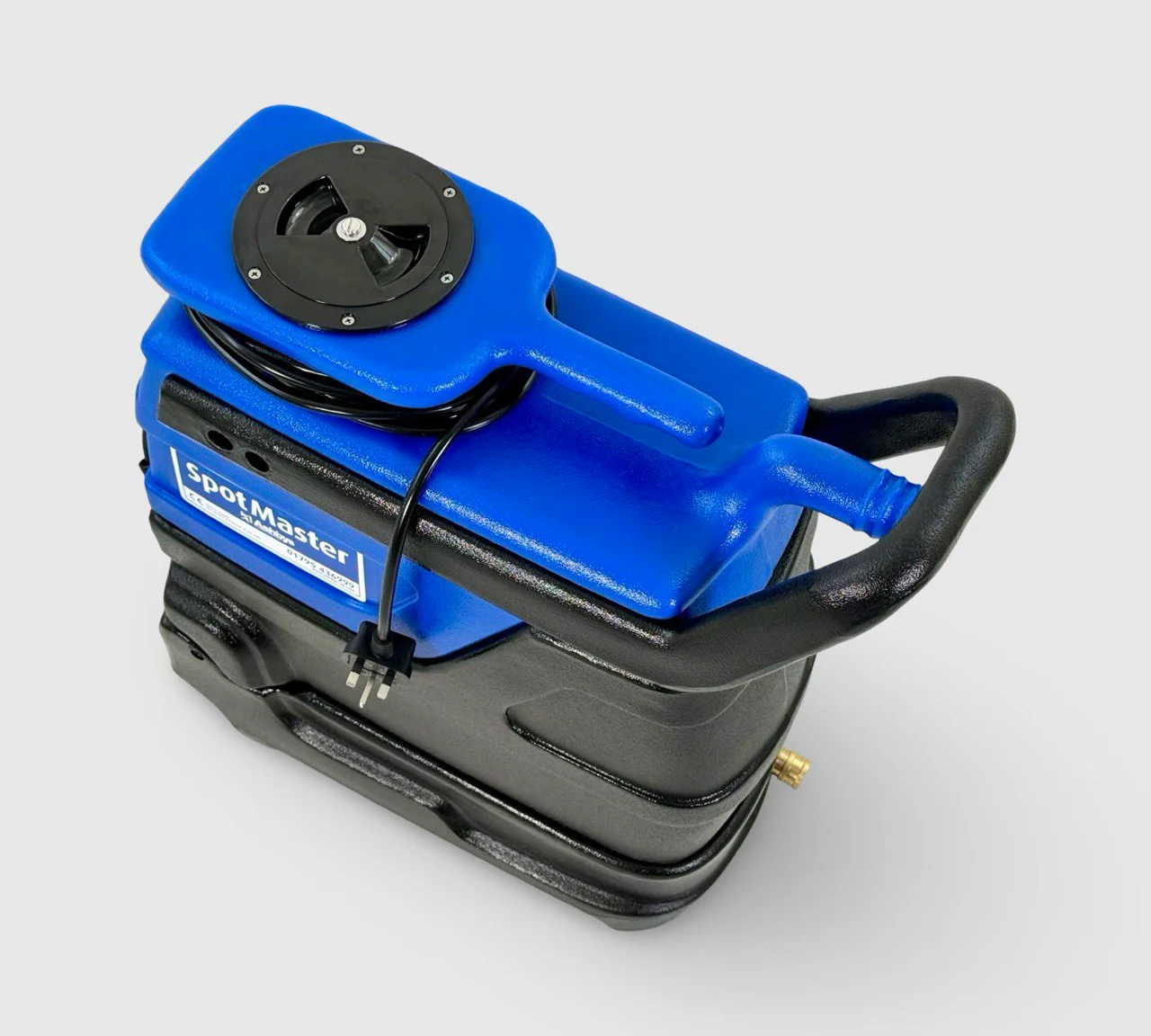

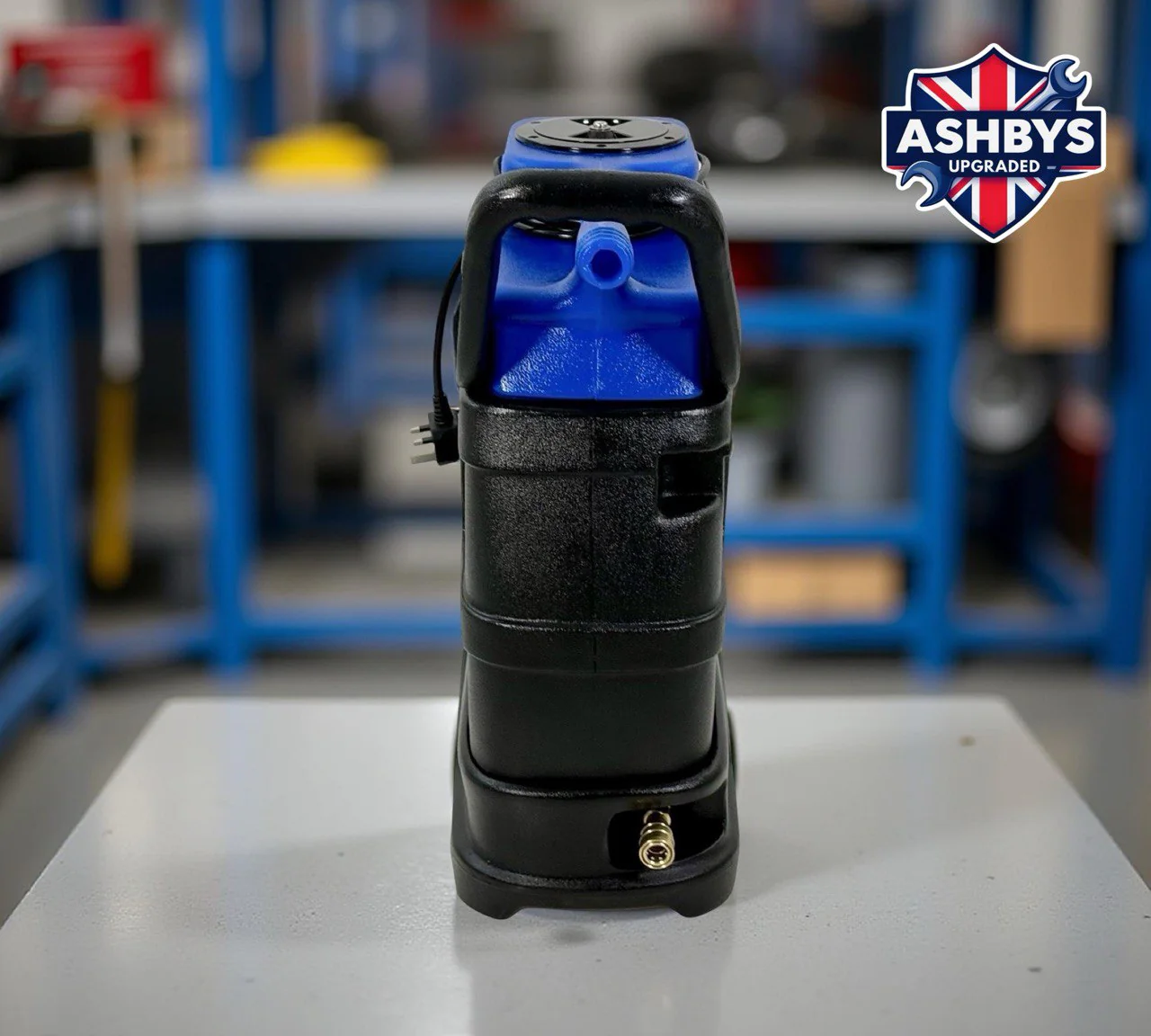

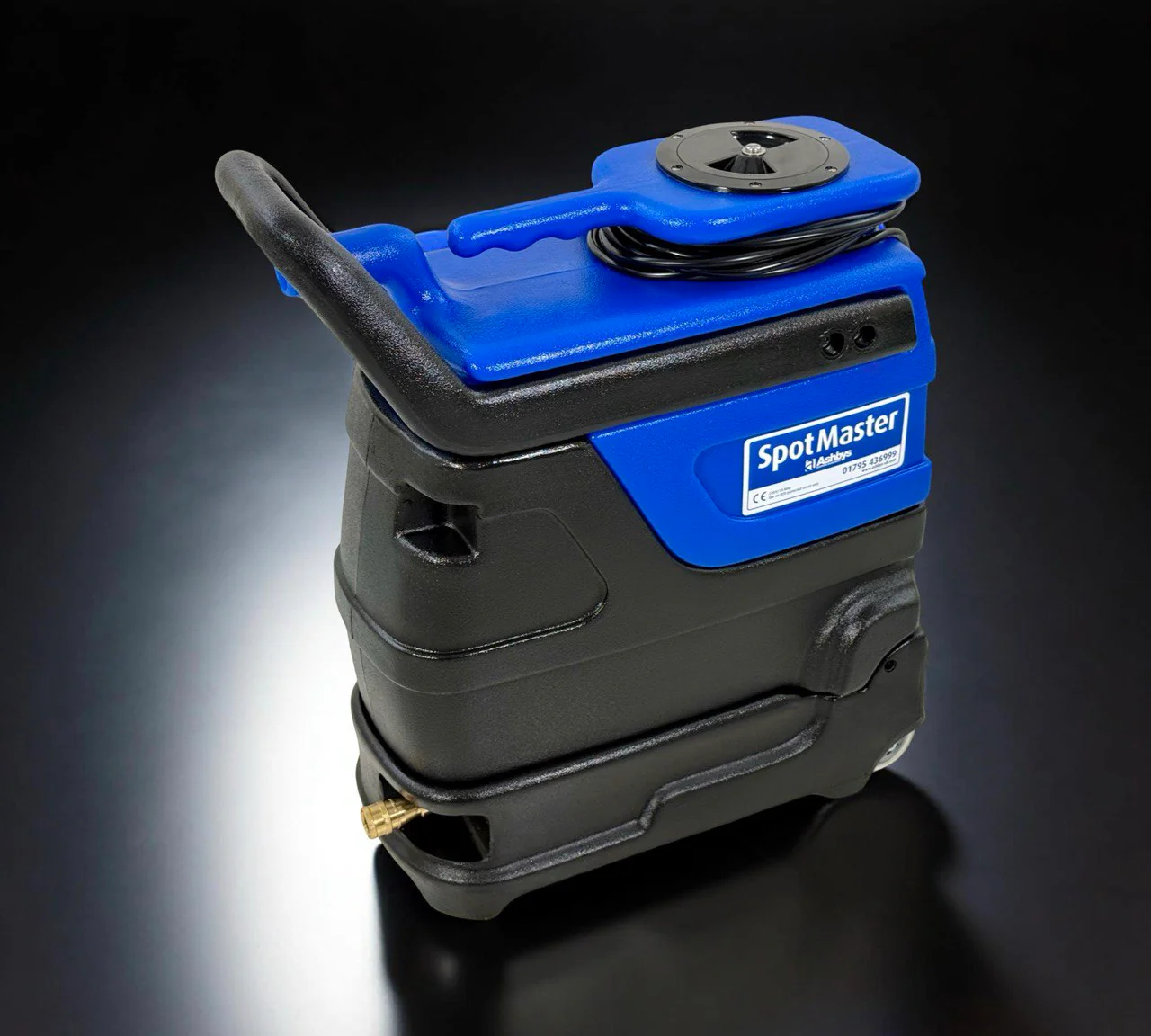

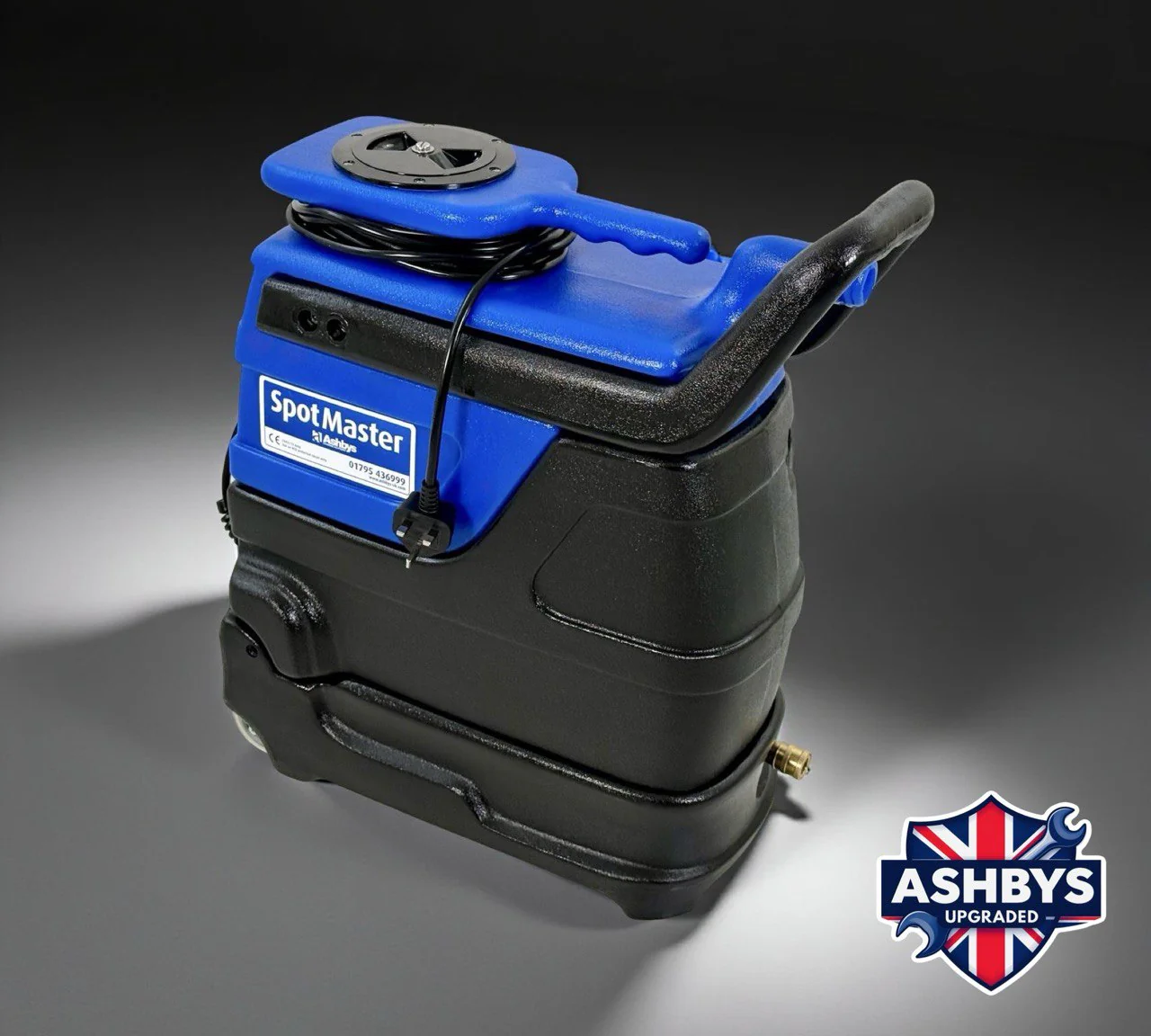

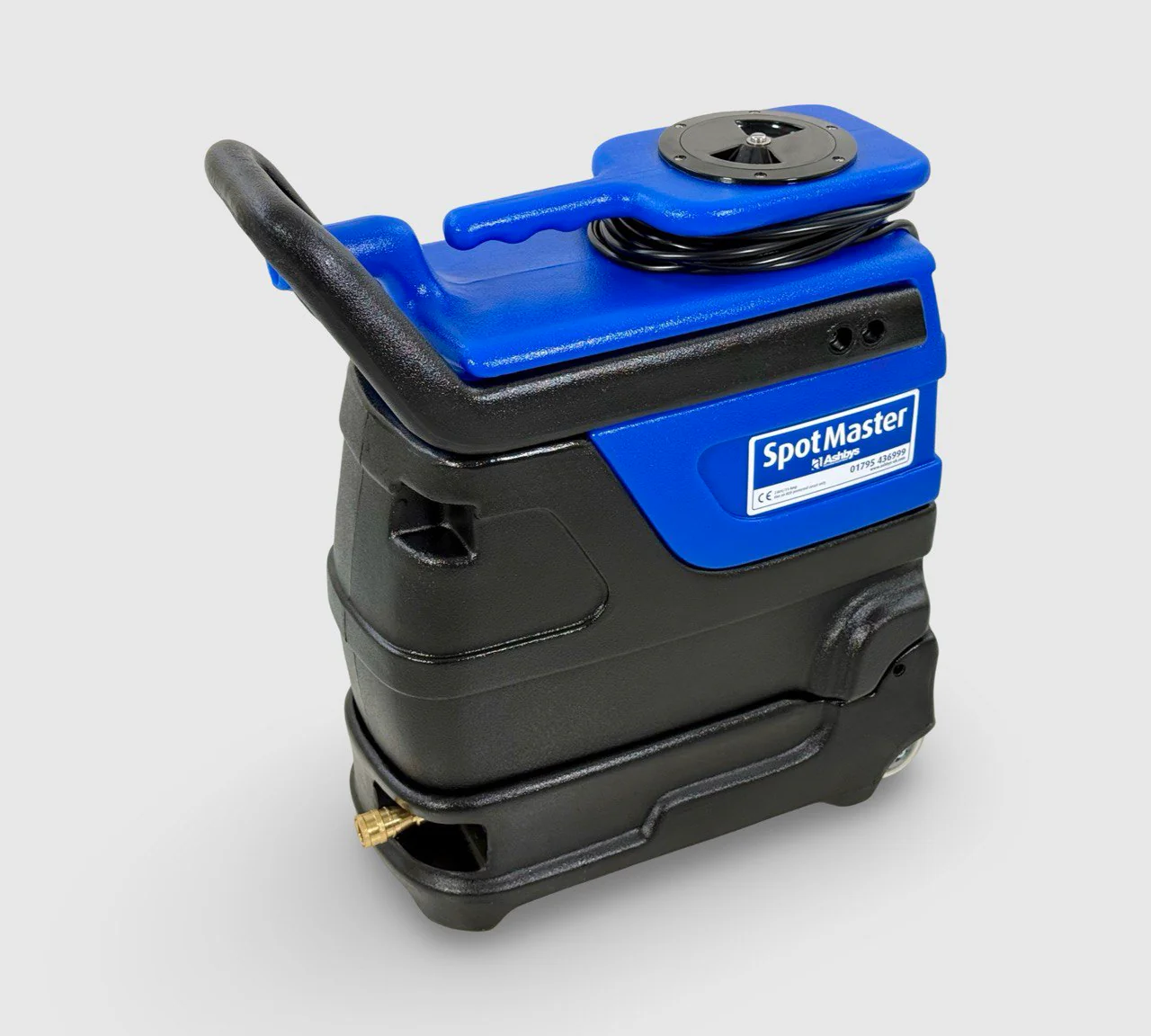

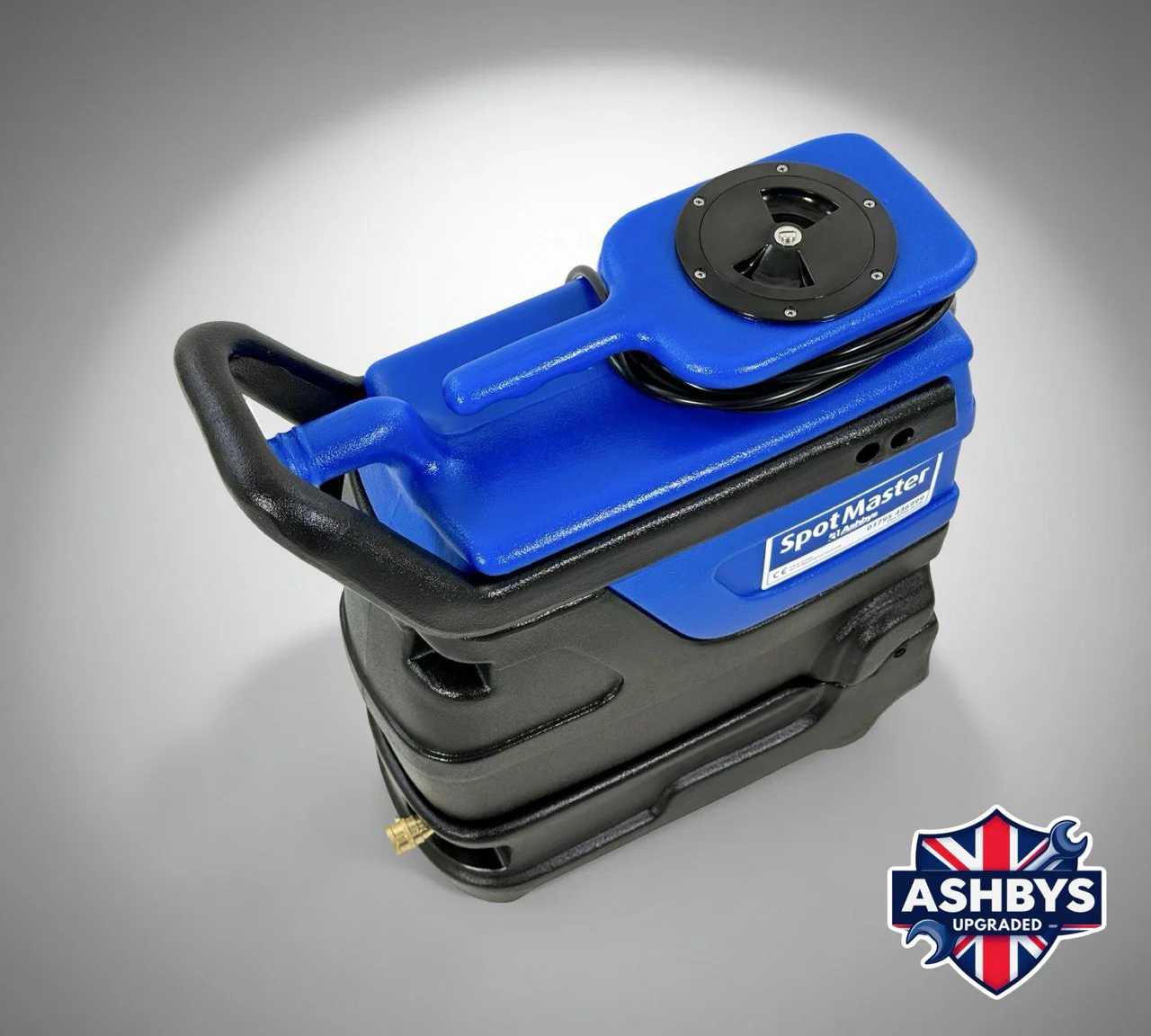

Ashbys UPGRADED Spot Master – Professional Spot & Stain Removal Machine with 12.5 ft Hose Set, Pump-out Hose & Instruction Manual

Ashbys carry out the following upgrades to this product before sale:

• Ashbys own unique recovery tank high level safety shut-off installed to protect the vacuum motor from water ingress when the dirty water tank is full.
• Vacuum baffling system installed to deflect water away from the vacuum motor during use, dramatically extending motor lifespan and improving electrical safety.
• Machine re-wired in-house to confirm UK electrical standards.

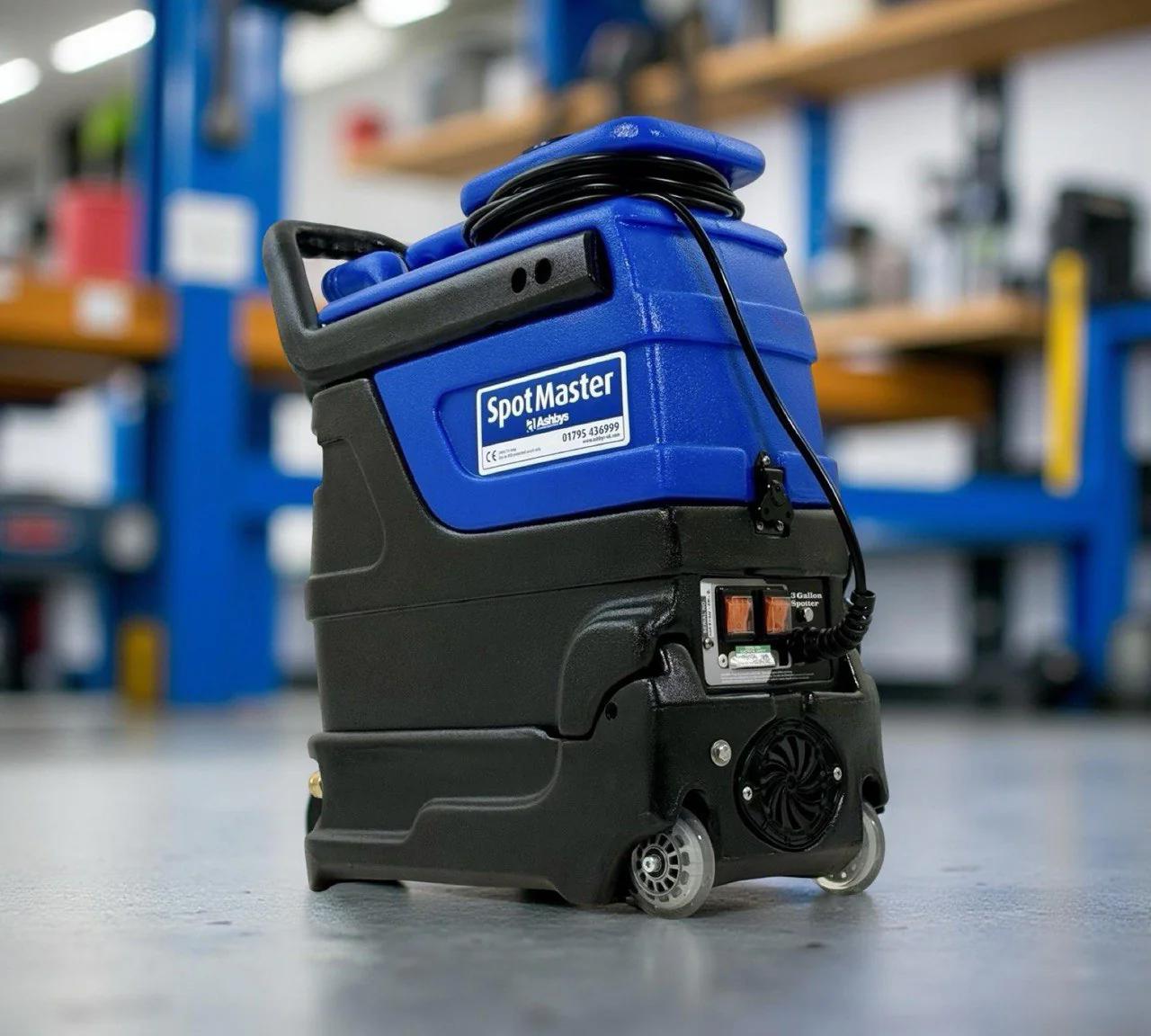

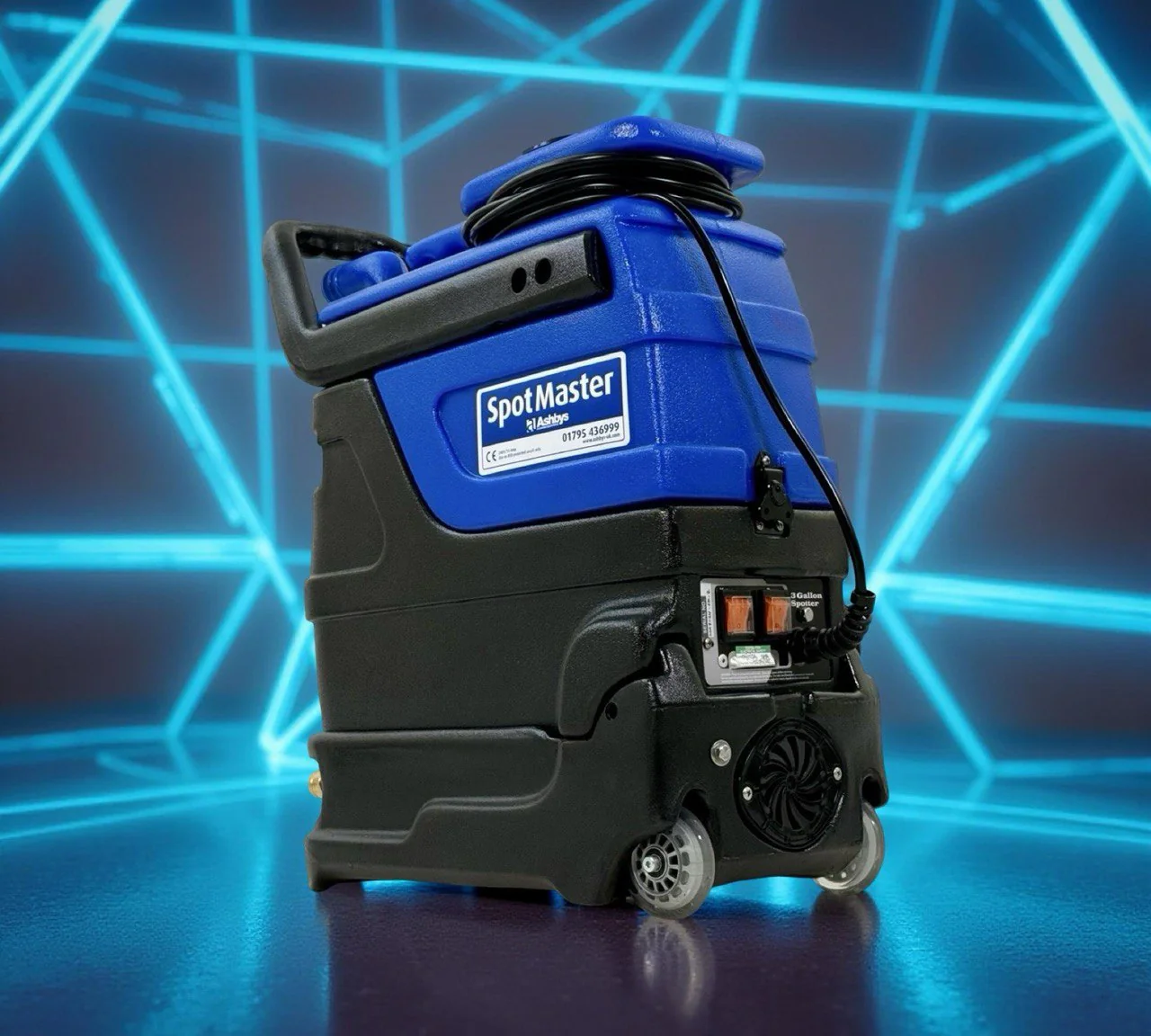

• All switches upgraded from single pole non‑illuminated to UK double pole illuminated switches with water‑resistant covers for operator safety.
• Colour‑coded illuminated switches for ease of use.
• Fitted with a UK‑standard 3‑core mains lead (brown live, blue neutral, green/yellow earth) for full electrical safety and compliance with UK wiring regulations.
• Upgraded hose set supplied – professional‑grade crush‑proof smoothbore 32 mm vacuum hose (flexible even at low temperatures) and Continental Neptune 3000 psi wire‑reinforced solution hose.

About Ashbys UPGRADED Spot Master

The Ashbys Spot Master is the ideal machine for professional spot and stain removal. It can also tackle water‑cleanable upholstery and occasional small‑area carpet cleaning, making it a perfect choice for professional mattress cleaning and vehicle valeting. Lightweight, easy to carry and fast to set up, the Spot Master is supplied with a hose set ready to fit your existing 1.5 inch hand tool or carpet cleaning wand.

Important Features UNIQUE to Ashbys Spot Master

• Ashbys have developed and fitted an effective recovery tank high level safety shut-off and vacuum baffling system to replace the standard vacuum restrictor. This system blocks the vacuum completely when the recovery tank is full, protecting the vacuum motor from accidental water ingress. The baffling system also deflects water away from the air intake during everyday operation. This combination dramatically extends vacuum motor life and is a key feature missing from many cheaper, identical‑looking spotting units.

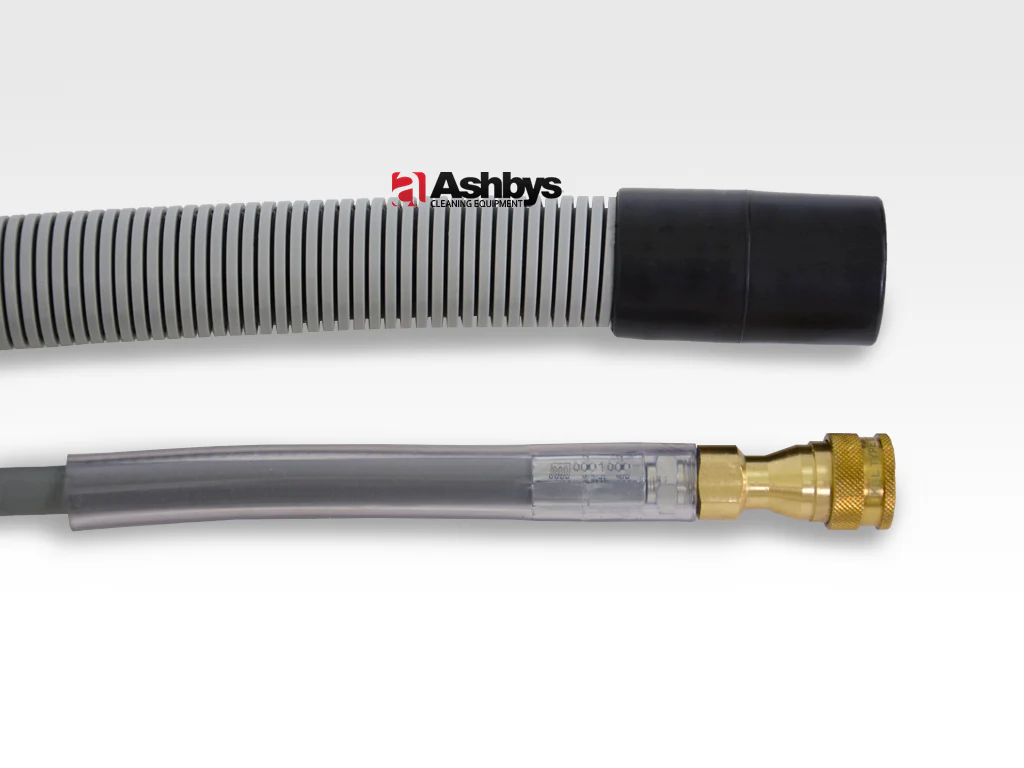

• Supplied with a professional‑grade 3.8 m (12.5 ft) hose set featuring Continental Neptune 3000 psi wire‑reinforced solution hose. Additional reinforcement is added at the tool end for longevity. The crush‑resistant vacuum hose is a 32 mm version of the same high‑quality hose used on our Enforcer, Ninja & Sensei units.
• Includes a Pump-out Hose for safely draining the clean water solution tank when not in use – ideal for transport.

Package Includes

1 x Ashbys Spot Master fitted with:

• Genuine Lamb Ametek 804 Watt 2‑Stage Vacuum Motor – delivering 6 Inches of Mercury / 81 Inches of Water lift and 100 CFM.
• 120 psi Water Pump System – 4 L/min flow rate providing a powerful, even spray for rinsing and extracting stains and dirt.
• Ashbys UNIQUE High Level Safety Shut-off – seals the vacuum system when the recovery tank is full, extending vacuum motor life.
• Ashbys UNIQUE Vacuum Baffling System – deflects water away from the air intake to prevent water entering the vacuum motor.
• Optional Built‑in 1000 Watt Inline Heater with On/Off Switch – provides instant heat to maximise stain removal efficiency. Fitted with a 93°C / 199°F fixed thermostat. When using an Ashbys 9 cm stainless steel hand tool (one wet pass, two dry passes), the Spot Master can raise cold tap water to 51°C, and even higher if pre‑heated water is used.

1 x 3 Year Warranty on Casing

1 x 1 Year Warranty on Parts

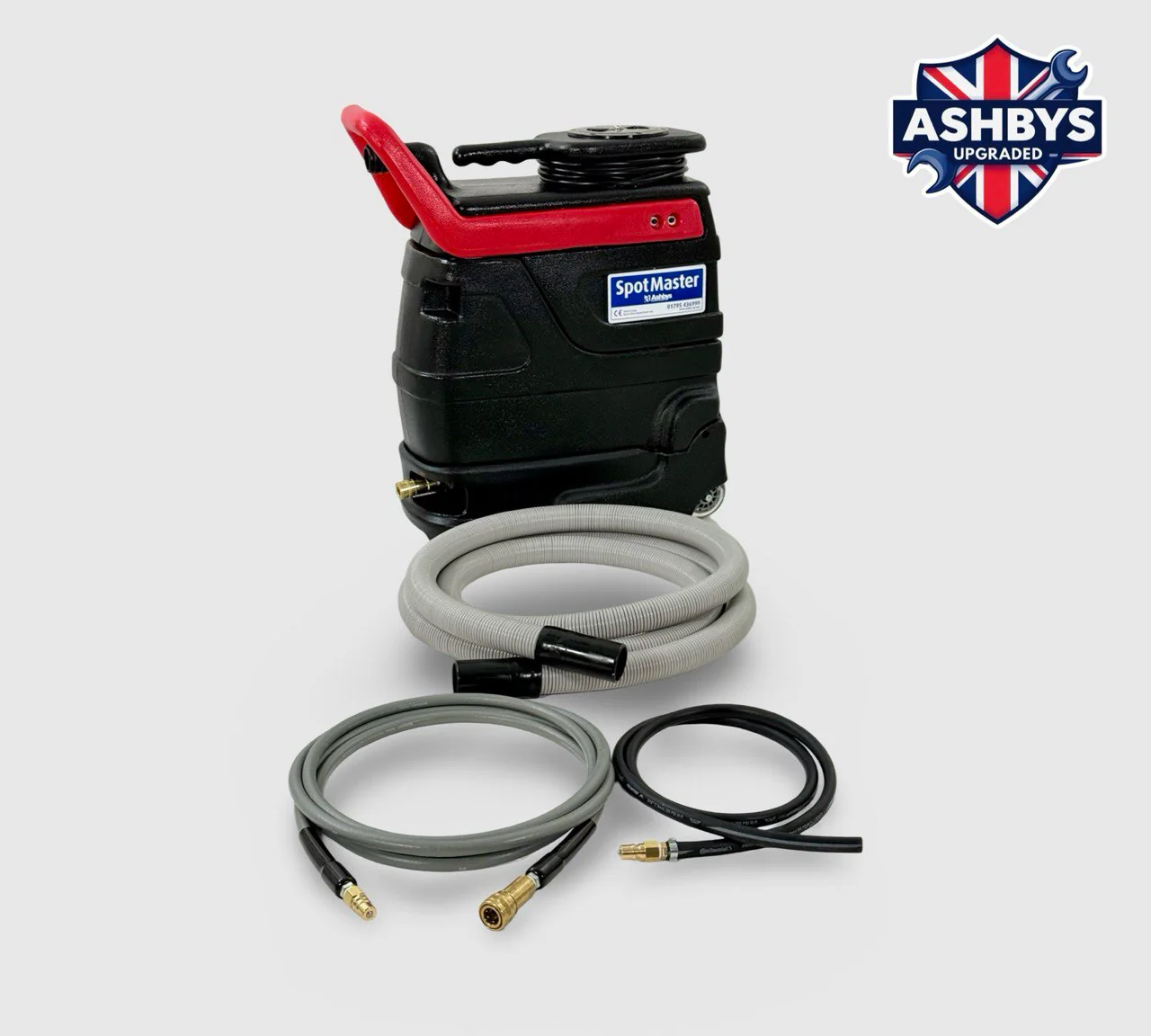

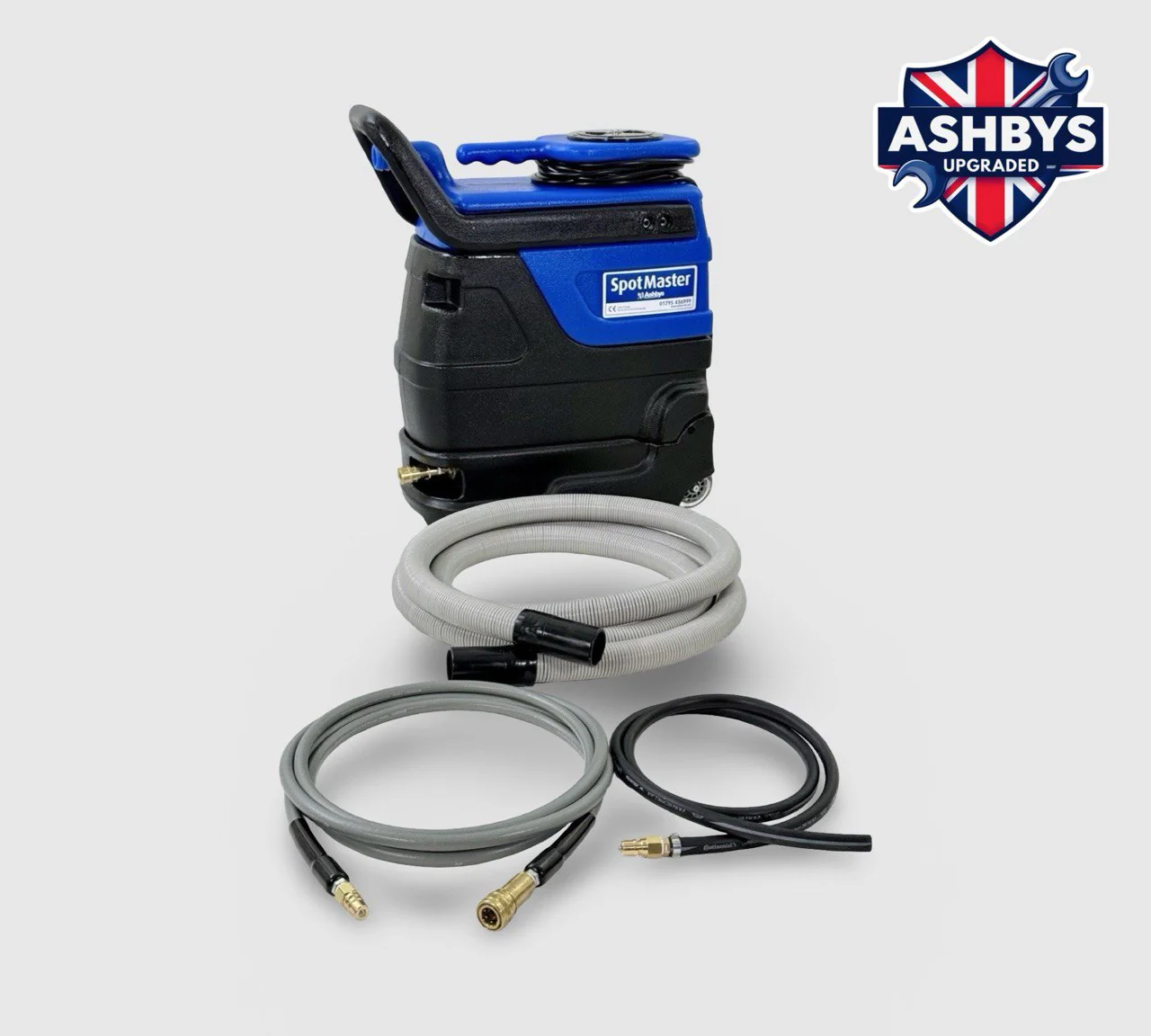

1 x Premium Quality 3.8 m / 12.5 ft High Pressure Hose Set – fitted with 1.5 inch hose cuff and Standard Female Brass Connector at the tool end, ready to fit all Ashbys (and many other) hand tools and wands with a 1.5 inch diameter vacuum tube and fitted with a Standard Male Brass Connector. Replacement hoses available: vacuum hose and solution hose.

1 x Pump-out Hose – allows the operator to drain the clean water solution tank when not in use.

1 x Instruction Manual

Dimensions & Weight

• Height: 59 cm
• Length (handle not extended): 55 cm
• Length (handle extended): 80 cm
• Width: 25.5 cm
• Clean water solution tank volume: 10 Litres usable
• Dirty water recovery tank volume: 7 Litres usable
• Dry weight with Inline Heater: 16.5 kg
• Dry weight without Heater: 13.8 kg

Technical Specifications

• Electrical Rating: 230 V ~ 50/60 Hz
• Current: 13 A
• Ingress Protection: IP52
